Rebar & Impalement Protection
Steel reinforcing bars, or rebar, are a common hazard on construction sites. The thin steel bars can stick out from construction projects and pose a hazard to workers who can cut or scratch
themselves on the sharp ends. Workers that stumble or fall onto the exposed steel bars can be pierced or impaled on them, resulting in serious internal injuries and death.
To protect workers from this hazard, WA L&I/OSHA requires that rebar and other projections on the worksite “be guarded to eliminate the hazard of impalement.” Guarding from rebar impalement hazards must be done when workers will be working around or at any height above exposed rebar. This also includes work situations where rebar is below grade or in a basement.
Fall prevention methods such as guardrails and personal fall protection systems are the first level of protection for workers. These should be used any time workers are exposed to potential falls of four feet or greater; a fall from any height can seriously injure a worker.

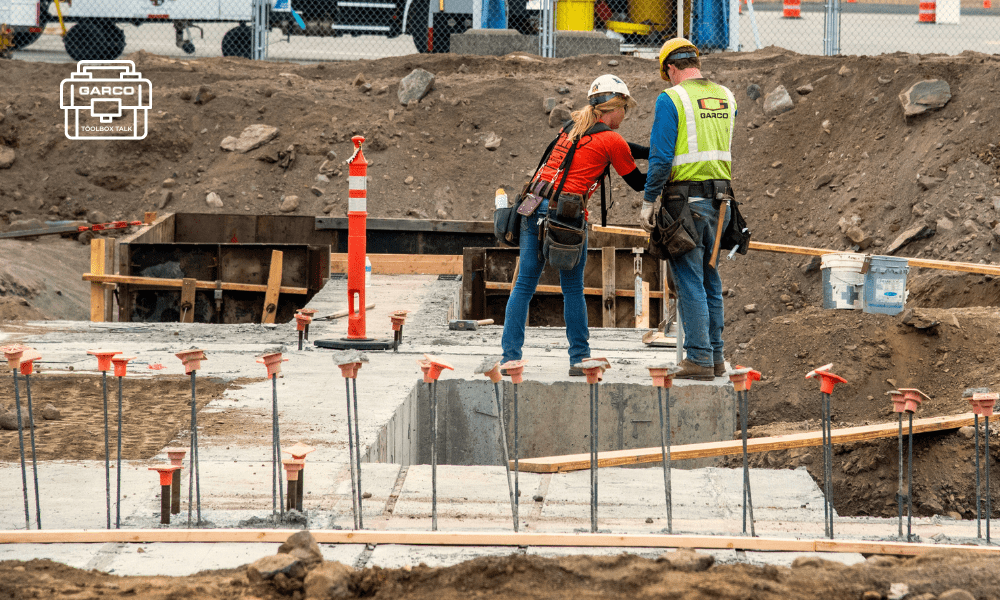

The next level of impalement protection is to use protective guard systems to cover the protruding ends. Steel reinforced rebar caps provide the strongest and best impalement protection for workers. Proper protective rebar caps should be at least 4” square or, if they are round, they should have a 4.5 inch diameter.
Some rebar caps are too narrow or not steel-reinforced. If a worker falls on a standard plastic cap, the impact pressure can push the rebar through the cap and impale the worker, or impale the
worker cap and all. Standard mushroom rebar caps and/or covers are only appropriate to prevent cuts, abrasions or other minor injuries when workers are working at grade with rebar and when there is no impalement hazard.

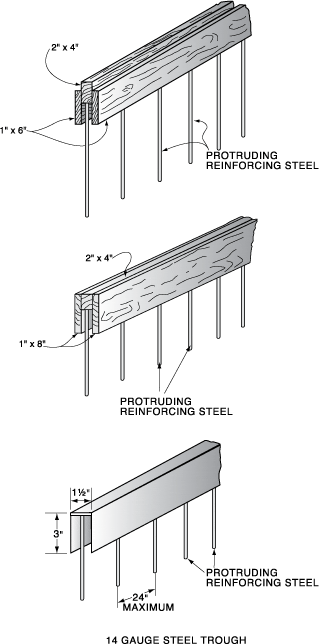

Long 2 x 4 wood caps or other manufactured troughs can be used to effectively protect exposed rebar. Protective rebar caps and troughs must have passed a drop test of 250 pounds from 10 feet above to prove that they can protect against impalement. If you construct protective wood troughs on the job site, they should be built according to a registered engineer’s drawings (keep the plans on site), or to the Cal OSHA specifications set in Appendix Plate C-25, available online at http://www.dir.ca.gov/Images/t8img/1938-48.gif
Workers should be vigilant around exposed rebar ends. Fall prevention is the first defense and covered rebar ends are extra insurance against impalement in case of a fall. With the focus on safety and protected rebar ends, this is one safety point workers will be glad to miss.
Remember, success starts with safety!
