Toolbox Talk: General Requirements and Inspection Criteria for Slings

General Requirements and Inspection Criteria for Slings

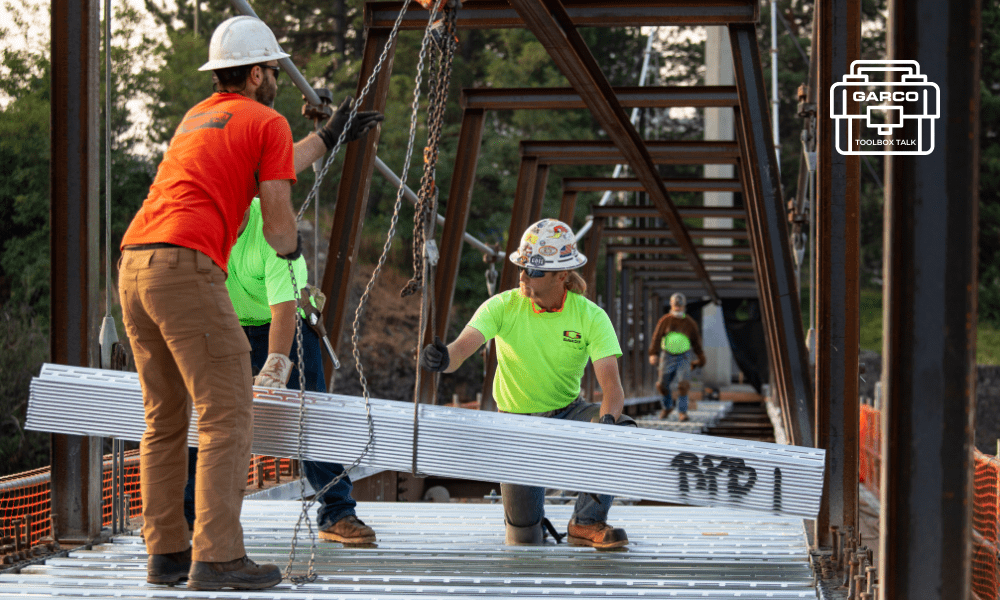

Suspended loads can present many hazards to our workers, such as struck-by, falling objects, and caught between injuries. The equipment we use to hoist loads, such as materials or equipment, must meet the applicable ASME standard and be inspected prior to each use. Please review the information below to understand the OSHA requirements for hoisting equipment.

Safe Operating Practices (OSHA 1926.251)

Whenever any sling is used, the following practices shall be observed:

1. Slings that are damaged or defective shall not be used.
2. Slings shall not be shortened with knots, bolts, or other makeshift devices.
3. Sling legs shall not be kinked.
4. Slings shall not be loaded in excess of their rated capacities.
5. Slings used in a basket hitch shall have the loads balanced to prevent slippage.
6. Slings shall be securely attached to their loads.
7. Slings shall be padded or protected from the sharp edges of their loads.
8. Suspended loads shall be kept clear of all obstructions.
9. All employees shall be kept clear of loads about to be lifted and suspended loads.
10. Hands or fingers shall not be placed between the sling and its load while the sling is being tightened around the load.
11. Shock loading is prohibited.
12. A sling shall not be pulled from under a load when the load is resting on the sling.
13. Employers must not load a sling in excess of its recommended safe working load as prescribed by the sling manufacturer, or the identification markings permanently affixed to the sling.
14. Employers must only use slings with affixed and legible identification markings.

Inspections

Each day before being used, the sling and all fastenings and attachments shall be inspected for damage or defects by a competent person designated by the employer. Additional inspections shall be performed during sling use where service conditions warrant. Damaged or defective slings shall be immediately removed from service.

Removal Criteria

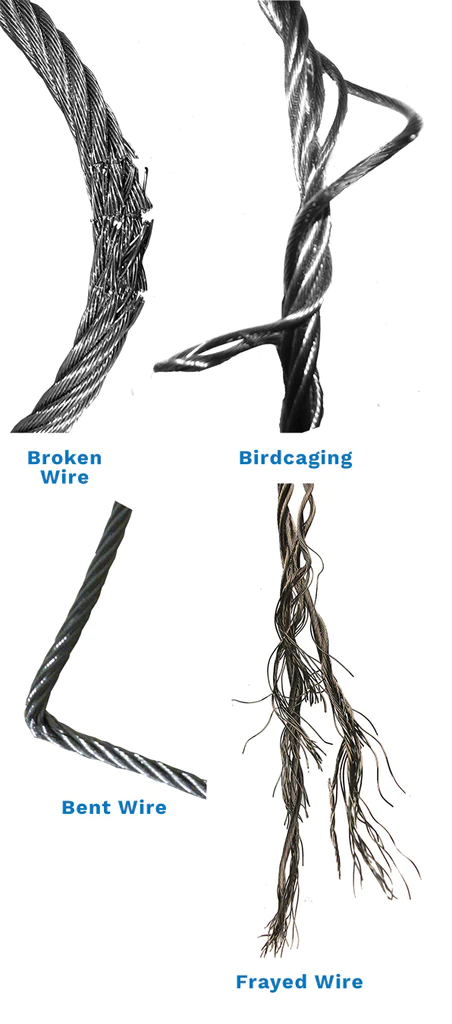

Wire Rope Slings (ASME B30.9)

A wire rope sling shall be removed from service if conditions such as the following are present:

1. Missing or illegible sling identification.
2. Broken Wires:
   • For strand-laid and single-part slings, 10 randomly distributed broken wires in one rope lay or 5 broken wires in one strand in one rope lay.
   • For cable-laid slings, 20 broken wires per lay.
   • For less than eight-part braided slings, 20 broken wires per braid.
   • For eight-part or more than eight braided slings, 40 broken wires per braid.
3. Severe localized abrasion or scraping.
4. Kinking, crushing, bird caging, or any other damage resulting in damage to the rope structure.
5. Evidence of heat damage.
6. End attachments that are cracked, deformed, or worn to the extent that the strength of the sling is substantially affected.
7. Severe corrosion of the rope, end attachments, or fittings.
8. For hooks, removal criteria as stated in ASME B30.10.
9. For rigging hardware, removal criteria as stated in ASME B30.26.
10. Other conditions, including visible damage, cause doubt as to the continued use of the sling.

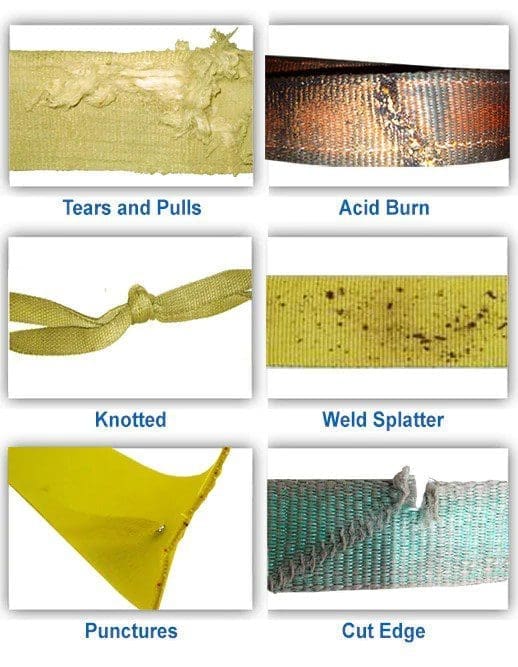

Nylon Web Slings (ASME B30.9)

A synthetic web sling shall be removed from service if conditions such as the following are present:

1. Missing or illegible sling identification.
2. Acid or caustic burns.
3. Melting or charring of any part of the sling.
4. Holes, tears, cuts, or snags.
5. Broken or worn stitching in load-bearing splices.
6. Excessive abrasive wear.
7. Knots in any part of the sling.
8. Discoloration and brittle or stiff areas on any part of the sling may mean chemical or ultraviolet/sunlight damage.
9. Fittings that are pitted, corroded, cracked, bent, twisted, gouged, or broken.
10. For hooks, removal criteria as stated in ASME B30.10.
11. For rigging hardware, removal criteria as stated in ASME B30.26.
12. Other conditions, including visible damage, cause doubt about the continued use of the sling.

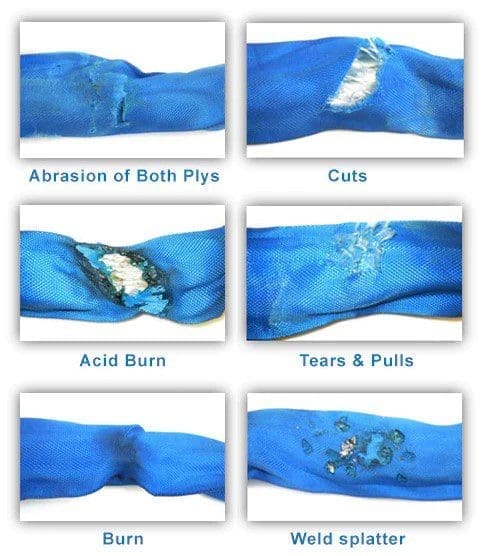

Polyester Round Slings (ASME B30.9)

A synthetic round sling shall be removed from service if conditions such as the following are present:

1. Missing or illegible sling identification.
2. Acid or caustic burns.
3. Evidence of heat damage.
4. Holes, tears, cuts, abrasive wear, or snags that expose the core yarns.
5. Broken or damaged core yarns.
6. Weld splatter that exposes core yarns.
7. Knots in the round slings, except for core yarns inside the cover.
8. Fittings that are pitted, corroded, cracked, bent, twisted, gouged, or broken.
9. For hooks, removal criteria as stated in ASME B30.10.
10. For rigging hardware, removal criteria as stated in ASME B30.26.
11. Other conditions, including visible damage, may cause doubt about the continued use of the sling.

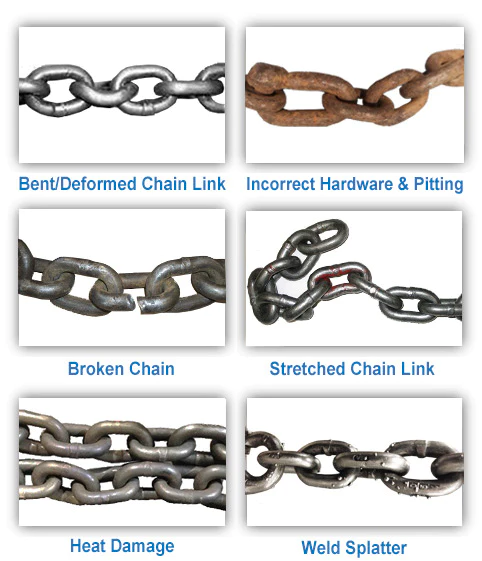

Alloy Steel Chain Slings (ASME B30.9)

An alloy steel chain sling shall be removed from service if conditions such as the following are present:

1. Missing or illegible sling identification.
2. Cracks or breaks.
3. Excessive wear, nicks, or gouges.
4. Stretched chain links or components.
5. Bent, twisted, or deformed chain links or components.
6. Evidence of heat damage.
7. Excessive pitting or corrosion.
8. Lack of ability of chain or components to hinge (articulate) freely.
9. Weld splatter.
10. For hooks, removal criteria as stated in ASME B30.10.
11. For rigging hardware, removal criteria as stated in ASME B30.26.
12. Other conditions, including visible damage, cause doubt about the continued use of the sling.
